What Is a Tablet Counter and How Does It Work?

A Tablet Counter is a solid example of how pharmaceutical automation turns a repetitive task into a controlled process. In a typical production room, tablets move from a stainless-steel hopper through vibrating channels. Optical sensors then detect each passing tablet and stop the flow when the programmed quantity is reached. A bottle may receive 30, 60, or 100 tablets within seconds. Small differences still matter.

The need for dependable counting is growing with medicine demand. IQVIA’s Global Use of Medicines 2024 report projects worldwide pharmaceutical spending to approach $2.3 trillion by 2028. That growth increases pressure on manufacturers to improve speed, traceability, and batch consistency. However, faster equipment does not automatically mean safer production. Dust, chipped tablets, static electricity, and overlapping products can affect counting accuracy.

Quality standards provide the necessary framework. The U.S. Food and Drug Administration’s Data Integrity and Compliance With Drug CGMP guidance emphasizes reliable, complete, and traceable manufacturing records. ISPE’s GAMP 5 guide also supports a risk-based approach to automated systems. These references explain why a Tablet Counter requires more than sensors and software. It needs validated settings, cleaning procedures, routine calibration, and trained operators.

The practical lesson is simple. Accuracy begins before counting.

In real facilities, operators still inspect rejected tablets, verify sample counts, and review electronic records. No machine is perfect. This point deserves more attention, because equipment performance can change with tablet shape, coating, and production conditions. Understanding how a Tablet Counter works helps teams choose suitable equipment, investigate discrepancies, and build a more reliable packaging line.

Table of Contents [Hide]

1 Tablet Counters Defined: GMP Equipment Under 21 CFR 211.68

2 Core Components: Hoppers, Vibratory Feeders, Sensors, and Control Systems

3 Counting Process Explained: From Tablet Separation to Bottle Filling

4 Accuracy Verification: Applying USP <905> 10-Unit Sampling Principles

5 GMP Operation and Validation: 21 CFR 211.110 In-Process Controls

Tablet Counters Defined: GMP Equipment Under 21 CFR 211.68

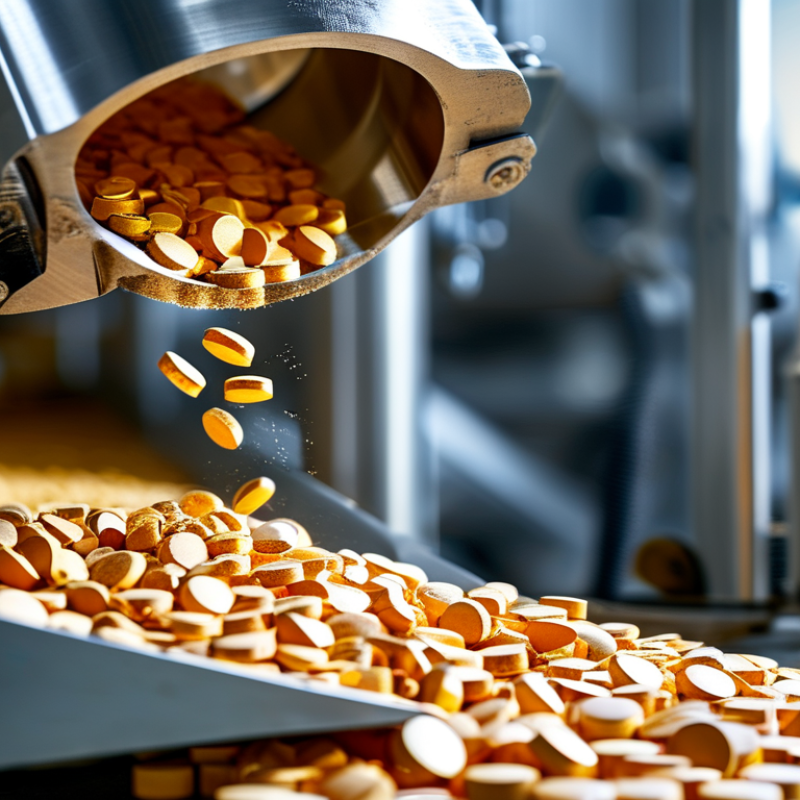

What Is a Tablet Counter and How Does It Work?

Tablet Counters Defined: GMP Equipment Under 21 CFR 211.68

A tablet counter is GMP equipment that counts solid dosage units before packaging. It usually uses sensors, controlled vibration, and a product chute. Tablets move in an even stream, while sensors detect each passing unit. The control system stops the flow at the programmed quantity. It counts fast. Accuracy still matters.

Under 21 CFR 211.68, automated equipment must support reliable operation through written procedures and routine checks. A tablet counter should be calibrated, inspected, and tested according to a documented schedule. Operators also need controlled access to settings and electronic records. Changes to count parameters should be traceable. These controls help protect batch integrity and support data reliability.

In practical production, staff should check counting accuracy at the start, during operation, and after a changeover. Test samples can reveal missed, double-counted, or damaged tablets. Cleaning is equally important, especially around sensors, guides, and collection areas. Dust can affect detection. Small errors matter. Validation should consider different tablet sizes, shapes, coatings, and operating speeds. A machine may perform well with one format but struggle with another. That limitation deserves attention. Good procedures should explain setup, line clearance, troubleshooting, and record review. Even strong equipment can fail when training, maintenance, or documentation becomes inconsistent. That is where careful human oversight remains necessary.

Core Components: Hoppers, Vibratory Feeders, Sensors, and Control Systems

What Is a Tablet Counter and How Does It Work?

A tablet counter is a machine that counts solid tablets before packaging. Its accuracy depends on several connected components, not one sensor alone. The hopper holds a steady supply above the counting area. Its sloped walls guide tablets downward without creating excessive pressure. Poor hopper design can cause bridging, where tablets stop moving. This problem is easy to overlook.

Vibratory feeders use controlled vibration to spread tablets into separate lanes. Their speed must match the tablet’s size, shape, and surface finish. Small, round tablets may move smoothly, while rough or irregular tablets can overlap. Adjustable vibration helps operators find a practical feed rate. Too much vibration creates bouncing and double counts. Too little vibration causes gaps and reduces output.

Optical sensors detect each tablet as it passes through the counting channel. A control system converts these signals into a target quantity, such as thirty or one hundred tablets. It can pause the feeder when the count is reached and trigger the container release. In routine production, operators should check sensor alignment, clean dust from contact areas, and verify counts with physical samples. Calibration records improve traceability and support reliable quality decisions. Still, sensors are not infallible. Transparent coatings, damaged tablets, or two tablets passing together may produce uncertain readings. Regular testing under real operating conditions remains essential.

Counting Process Explained: From Tablet Separation to Bottle Filling

A tablet counter converts loose tablets into a controlled bottle-filling stream. The process begins in a hopper. A vibratory feeder spreads tablets across narrow lanes. Separation matters. If tablets overlap, sensors may read two units as one. Adjustable rails, vibration, and gentle slopes create space between tablets. Photoelectric sensors detect each passing tablet. Multiple channels can increase throughput without crowding one lane. In practice, tablet shape, coating, static, and dust can change performance.

When the programmed count is reached, an indexing mechanism positions the bottle beneath the discharge point. The bottle pauses briefly. Tablets fall through a short, protected path. Sensors confirm bottle presence and count signals. A reject gate removes containers with missing counts or other faults. This sequence sounds simple. It is not. A chipped tablet, tilted bottle, or dusty sensor can cause an incorrect result. Operators should check line clearance, sensor alignment, feeder speed, and sample counts during production.

Counting accuracy needs evidence, not visual confidence. USP General Chapter <905> evaluates 10 dosage units initially, with testing expanding to 30 when required, and uses an acceptance value of 15.0. This test does not replace package-count verification. The FDA reported 48 new drug shortages in 2023 and noted that manufacturers helped prevent 236 shortages. Reliable packaging supports supply continuity, but it cannot remove wider supply risks. A useful validation record compares target counts, rejects, stoppages, and actual results across several runs. Perfect-looking output can still hide gradual sensor drift.

Accuracy Verification: Applying USP <905> 10-Unit Sampling Principles

A tablet counter uses sensors, vibration, and controlled product flow to detect each tablet as it passes. The machine records every interruption in the light beam or counting field. Its accuracy depends on tablet shape, surface finish, speed, and spacing. Dust can interfere. So can chipped edges.

For verification, USP <905> offers a useful but limited reference point. Its initial assessment examines 10 dosage units individually for uniformity. This principle focuses on dose consistency, not merely the number of tablets counted. A practical verification plan can select 10 representative units or test portions from a production run. Operators should compare the expected count with the observed count, record deviations, and inspect unusual tablets separately. The sampling point matters. Taking units only from the beginning of a run may hide later feed problems. A trained operator should also check hopper loading, sensor alignment, and reject settings before testing. Keep records.

Ten units may reveal an issue, but they cannot prove perfect performance. That is the uncomfortable part. A counter may pass a small check and still miscount during faster operation. For stronger evidence, repeat checks at different speeds, container sizes, and product levels. The final procedure should be validated for the specific equipment and tablet type. USP <905> should guide interpretation, not replace engineering controls, documented calibration, or quality review.

Tablet Counter Accuracy Verification: USP <905> 10-Unit Sampling

USP <905> begins with a sample of 10 dosage units. If the initial evaluation does not meet the applicable acceptance requirements, 20 additional units are tested, bringing the total sample to 30. A tablet counter can use this sampling plan to verify counting accuracy and support documented quality checks.

GMP Operation and Validation: 21 CFR 211.110 In-Process Controls

A tablet counter is an in-process machine that counts solid doses before packaging. Tablets move through a controlled feed path. Vibration separates them into a steady stream. Optical sensors detect each tablet as it passes. The control system compares the detected count with the programmed quantity. The container stops when the target is reached. Simple in theory.

Under GMP, the counter must support documented in-process controls under 21 CFR 211.110. Operators should verify tablet identity, appearance, count accuracy, and container status at defined intervals. Written procedures should explain sampling points, acceptance limits, and actions for failed checks. Weight variation can reveal missed or extra tablets. It can also expose feeding problems. Records must be complete, legible, and traceable to the batch.

Validation normally covers installation, operation, and performance. Installation checks confirm correct assembly, sensor placement, software settings, and calibration status. Operational testing challenges different speeds, tablet sizes, counts, and intentional feed interruptions. Performance testing uses routine production conditions and repeated samples. Operators should document rejected containers, line clearance, reconciliation, and deviations. A challenge test may appear successful, yet poor cleaning can create another risk. No sensor replaces good judgment. Manual verification remains useful, especially after stoppages or changeovers. The uncomfortable detail is that a validated counter can still produce unreliable results when procedures are rushed or staff training is weak.

What Is a Tablet Counter and How Does It Work? - GMP Operation and Validation: 21 CFR 211.110 In-Process Controls

Process Dimension	What It Means	How the Tablet Counter Works	GMP Operation and Validation Controls	Relevant Regulatory Basis
Equipment Function	A tablet counter measures and dispenses a specified quantity of tablets into a container.	Tablets are fed from a hopper onto a controlled conveying surface. Sensors detect individual tablets as they pass through a counting zone, and the system stops or diverts the flow when the programmed count is reached.	Use an approved operating procedure. Confirm the equipment is suitable for the product and container format. Document equipment identification, status, and line clearance before use.	21 CFR 211.100; 21 CFR 211.110
Counting Technology	The detection method used to distinguish tablets and calculate the final count.	Common systems use photoelectric sensing, controlled spacing, or image-based inspection. The selected method should be capable of detecting the tablet shapes, sizes, colors, and surfaces used in the process.	Challenge the system with representative product characteristics. Evaluate missed counts, double counts, fragments, and tablets that overlap or travel together. Define alarm and rejection responses in the procedure.	21 CFR 211.68; 21 CFR 211.110
Product Feeding	The controlled movement of tablets from the supply hopper to the counting area.	Vibration, belts, chutes, or other controlled mechanisms separate tablets sufficiently for reliable detection while minimizing damage and accumulation.	Set and record operating parameters such as feed rate and vibration level where applicable. Inspect for tablet breakage, capping, chipping, excessive dust, or bridging. Confirm that product-contact surfaces are clean and suitable for use.	21 CFR 211.67; 21 CFR 211.110
Target Count	The approved number of tablets required in each container or package.	The operator enters or selects the authorized count setting. The counter compares the detected quantity with the target and completes the fill when the target is reached.	Verify the count setting against the batch record and packaging instructions. Use access controls or documented checks to prevent unauthorized changes. Perform an independent verification when required by the site procedure.	21 CFR 211.100; 21 CFR 211.110
In-Process Sampling	Sampling and testing performed during production to monitor process performance.	Samples are collected at defined intervals, such as the beginning, middle, and end of a run, and after adjustments or interruptions. The samples are checked for count accuracy and other approved attributes.	Define sampling locations, frequency, sample size, and acceptance criteria in written procedures. Record actual results rather than only pass or fail conclusions. Investigate results outside established limits before batch disposition.	21 CFR 211.110(a)
Count Accuracy	The ability of the machine to dispense the intended number of tablets consistently.	Accuracy is assessed by comparing the programmed target with the verified number of tablets in sampled containers or test runs.	Use a documented, product-specific acceptance criterion approved by the quality unit. Verify representative operating conditions, including normal and challenging feed conditions. Do not substitute an unapproved tolerance for a defined specification.	21 CFR 211.110(a); 21 CFR 211.160
Weight Monitoring	A supplementary check that may support detection of under-counted or over-counted containers.	A checkweigher or manual weight check compares the filled container weight with an established expected range based on container, closure, and tablet characteristics.	Use weight checks only when scientifically justified and correlated with tablet count. Account for tablet weight variation, container variation, and tare weight. Investigate discrepancies rather than relying solely on average weight.	21 CFR 211.110(a); 21 CFR 211.160
Reject and Alarm Controls	Mechanisms that prevent or identify containers with suspected count or process failures.	The system may stop the line, activate an alarm, or divert a container when a sensor fault, missed count, jam, low product level, or other defined condition occurs.	Challenge each critical alarm and reject function during qualification. Verify that rejected containers are identified, segregated, and reconciled. Document restart checks after a jam, interruption, or power loss.	21 CFR 211.68; 21 CFR 211.110
Line Clearance	Confirmation that the packaging area and equipment are free from materials and documents from the previous operation.	Operators inspect the hopper, feed path, counting zone, discharge area, conveyors, and adjacent work areas before introducing the next product or packaging order.	Remove previous product, labels, containers, printed materials, and waste. Check equipment status labels and cleaning records. Record the clearance inspection and required second-person verification.	21 CFR 211.67; 21 CFR 211.100
Cleaning and Changeover	Removal of product residue and other contamination risks before the next approved operation.	Product-contact parts are disassembled or accessed according to the approved procedure, cleaned using authorized materials, inspected, and reassembled.	Identify difficult-to-clean locations and product-contact surfaces. Use defined cleaning methods, agents, contact times, and drying requirements. Document cleaning status and inspect for residual tablets, dust, or foreign material.	21 CFR 211.67
Calibration and Verification	Activities that demonstrate measuring, sensing, and control functions remain reliable.	Sensors, scales, timers, counters, and other critical instruments are checked against suitable standards or test methods at defined intervals.	Maintain calibration schedules and equipment history. Use standards traceable to appropriate national or international measurement references when applicable. Assess the impact of an out-of-tolerance result on previously processed product.	21 CFR 211.68; 21 CFR 211.160
Qualification	Documented evidence that the equipment is installed and operates as intended.	Installation Qualification confirms correct installation and utilities. Operational Qualification challenges controls, alarms, sensors, settings, and operating ranges.	Verify manuals, drawings, materials of construction, utilities, software, and safety features. Test operating limits and foreseeable failure conditions. Approve protocols and reports before routine production use.	21 CFR 211.68; 21 CFR 211.100
Performance Qualification	Evidence that the counter performs consistently with the intended product and process under routine conditions.	Production-representative runs are performed using approved settings, operators, materials, and normal process conditions to demonstrate repeatable count performance.	Use a justified number of runs and samples based on process risk and site validation procedures. Assess count accuracy, rejected units, downtime, tablet damage, and operator interventions. Define requirements for continued process verification after approval.	21 CFR 211.100; 21 CFR 211.110
Data Integrity	Maintaining complete, consistent, accurate, and attributable production and test records.	Electronic settings, event logs, alarm records, counts, adjustments, and manual checks are controlled according to the system's validated capabilities.	Restrict access according to user responsibilities. Retain original data, audit trails where applicable, and contemporaneous entries. Document corrections without obscuring the original entry.	21 CFR 211.68; 21 CFR 211.188
Deviation Handling	The formal process for assessing unexpected events or results that may affect product quality.	Examples include count discrepancies, sensor failure, repeated alarms, excessive rejects, damaged tablets, unplanned adjustments, or incomplete records.	Place affected material on appropriate hold when required. Document the event, investigation, root cause, product impact, and disposition. Implement corrective and preventive actions when warranted.	21 CFR 211.192; 21 CFR 211.198
Batch Record Review	Quality review of manufacturing and packaging records before batch release or disposition.	Recorded count checks, settings, line clearance, equipment status, alarms, rejects, reconciliation, deviations, and approvals are reviewed for completeness and compliance.	Compare actual results with approved in-process limits and specifications. Confirm that discrepancies were investigated and resolved. Ensure the quality unit approves or otherwise controls final disposition as required.	21 CFR 211.188; 21 CFR 211.192
